Multisensor T - U.R. - CO2 eq. for rectangular wall-box

71 Series

CODE: EK-ET3-TP

  • Multisensor T - U.R. - CO2 eq. for rectangular wall-box Multisensor T - U.R. - CO2 eq. for rectangular wall-box
  • Multisensor T - U.R. - CO2 eq. for rectangular wall-box Multisensor T - U.R. - CO2 eq. for rectangular wall-box
  • Multisensor T - U.R. - CO2 eq. for rectangular wall-box Multisensor T - U.R. - CO2 eq. for rectangular wall-box
  • Multisensor T - U.R. - CO2 eq. for rectangular wall-box Multisensor T - U.R. - CO2 eq. for rectangular wall-box
  • Multisensor T - U.R. - CO2 eq. for rectangular wall-box Multisensor T - U.R. - CO2 eq. for rectangular wall-box
  • Form
  • Flank
  • 'NF
  • Deep
  • 3D view
Description

The Ekinex® multisensor 71 series detects values of temperature, relative humidity and CO2 equivalent concentration in an air mass. The device can act as a temperature regulator of a room or zone; it can also perform the regulation by thresholds of relative humidity and CO2 concentration. The frontal LEDs indicate if the device is in heating, cooling, dehumidification or CO2 threshold mode. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is supplied by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.

Technical data
  • 30 Vdc power supply by KNX bus
  • Current consumption from bus < 13 mA
Delivery

Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.

Accessories

The following accessories are available to be ordered separately:

  • 1 full front cover with 60 x 60 mm modularity
  • rectangular frame Form or Flank version
  • rectangular plate with 60 x 60 mm window
  • a plastic adapter
  • a metal support for installation onto round or square (fixing holes 60 mm apart) or rectangular (fixing holes 83,5 mm apart) mounting box
Functions / Features
  • Integrated temperature and relative humidity sensors
  • Integrated VOCs (Volatile Organic Compounds) sensor with output signal for CO2 equivalent
  • Room thermostat function
  • Threshold regulator function for relative humidity and CO2
  • LEDs for heating, cooling, dehumidification or CO2 threshold mode indication
  • Plastic casing
  • Connection to bus line with KNX terminal block
  • Frontal programming pushbutton and LED
  • Wall-mounting installation on round or square wall box
  • IP20 protection degree (installed)
  • Weight 90 g (with mounting support)
Configurationa and commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 2.0 or later versions. ETS application program: APEKET2TP##.knxprod (## = release). Available languages: English, French, German, Italian

Do you want to configuring your product and create a tailor-made project for you?
With Ekinex Planner you can define the needs of a system, choose the most suitable finishes and give a personal touch to the buttons.

Go to the Planner

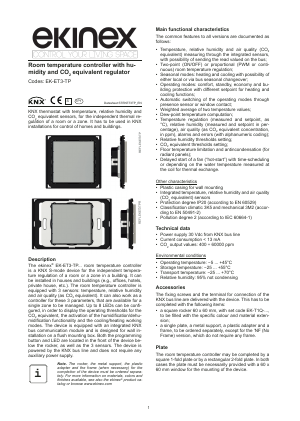

STEKET3TP_EN
  • v. 2.0 (17/10/2022)
  • PDF | 1,8 MB
  • Download
FISPET3TPIEXXX2
  • v. 2.0 (17/10/2022)
  • PDF | 1,1 MB
  • Download
MAEKET3TP_EN
  • v. 3.0 (17/10/2022)
  • PDF | 3,3 MB
  • Download
APEKET3TP
  • v. 0.3 (17/10/2022)
  • ZIP | 603,6 KB
  • Download
CEEKET3TP
  • v. 1.0 (17/10/2022)
  • PDF | 840,9 KB
  • Download
KNX_Certification_EK-ET3-TP
DSEKET3TPR
