Signum - 20venti Series - 71 Series
CODE: EK-E73-TP

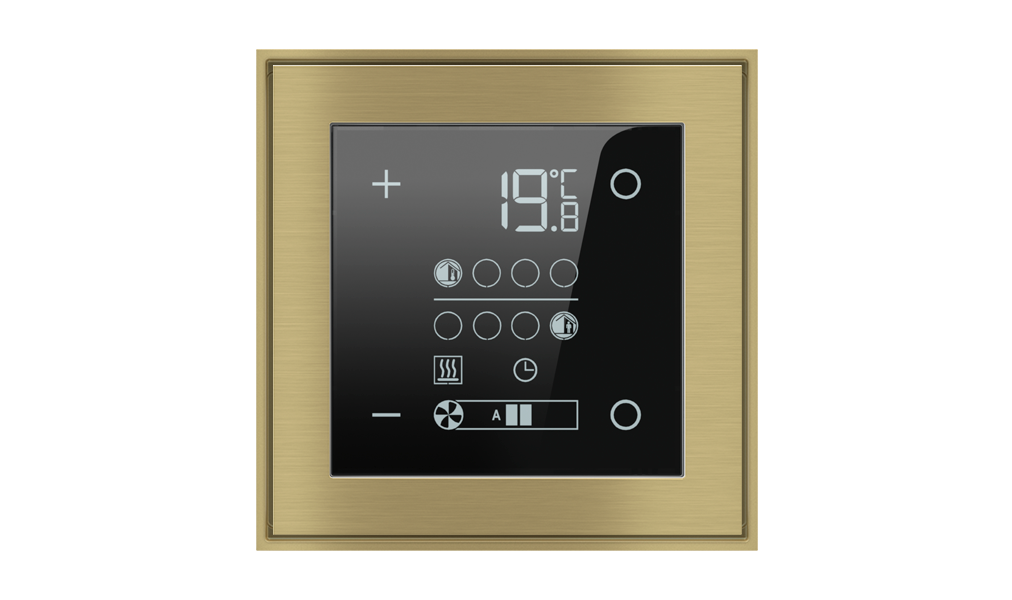

The Ekinex® room temperature controller of 71 series regulates independently the temperature of a room or a zone. In combination with one or more KNX actuators, the room temperature controller is able to control the heating and cooling emission of a series of terminal units for the thermal exchange (such as radiators, fan-coils, floor and ceiling radiant panels, etc.). The device is provided with a LCD-Display with adjustable backlight, and a sensor for temperature measuring. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is powered by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKE72TP##.knxprod (## = release). Available languages: English, French, German, Italian
