4-fold 0-10 V actuator

DIN-Rail mount modules - DIN-Rail mount modules

CODE: EK-GF1-TP

Description

The Ekinex® 4-fold 0-10 V actuator EK-GF1-TP can be used as 0-10 V control output device or, alternatively, for controlling dimmerable LED power supply units. When used for LED controlling, the selection of the colour can be made optionally in HSV or RGB mode. Scenarios, predefined sequences, sequence repetition and random functions are available; the dimming speed and the holding time are programmable. The device is fitted with membrane pushbuttons for manual command and LEDs for status indication; a pushbutton allows the switching between automatic or manual operation modes. The device integrates a KNX bus communication module and is realised for mounting on a standard 35 mm DIN-rail. The device is powered by the KNX bus.

Technical data
Power supply
  • Voltage (control): 30 Vdc by KNX bus
  • Rated output stage supply voltage: 100-230Vac, 50/60Hz max 5W
Outputs
  • Number: 4
  • Range: 0-10 V or 1-10V
  • Max. current for each channel: 50 mA
Delivery

Delivery includes a terminal block for connection to the bus and a terminal block for connection to the auxiliary power supply.

Functions / Features
  • Plastic casing
  • Frontal programming pushbutton and LED
  • Membrane keyboard with LEDs for status indication of outputs
  • Pushbutton for switching operating mode (normal / programming)
  • CH pushbutton for individual or simultaneous channels control
  • HSV / RGB pushbutton colour control mode
  • Connection to bus line with KNX terminal block
  • Connection of outputs with screw terminals
  • Installation on 35 mm rail (according to EN 60715)
  • 4 modular units (1 MU = 18 mm)
  • IP20 protection degree (installed device)
Configurationa and commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKGF1TP##.knxprod (## = release).

STEKGF1TP_EN_EKINEX_SPA_v.1.0
FISPGF1TPIEXX01_EKINEX_SPA
MAEKGC1GF1TP_EN - Release-v1.2
APEKGF1TP
  • v. 03 (11/09/2024)
  • RAR | 490,9 KB
  • Download
DSEKGF1TP
CEEKGF1TP
  • v. 1.0 (30/01/2019)
  • PDF | 304,7 KB
  • Download

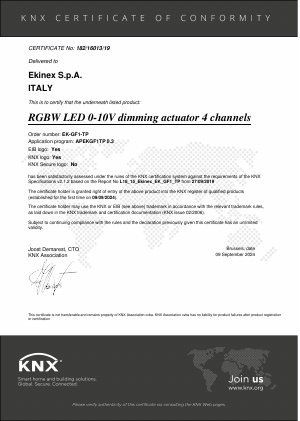

KNX_Certification_EK-GF1-TP
  • v. 0.3 (09/09/2024)
  • PDF | 770,5 KB
  • Download
